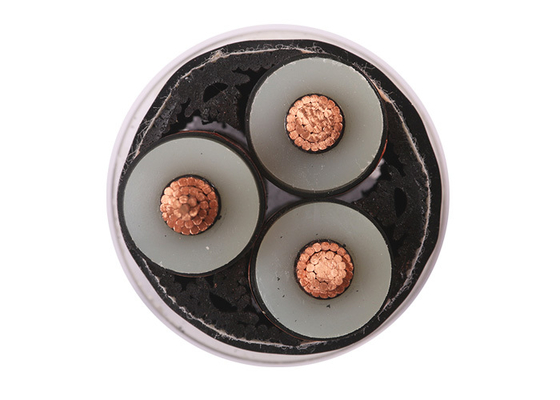

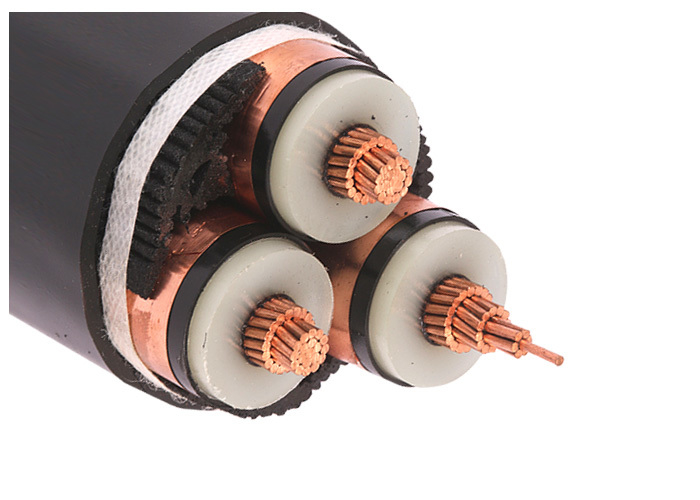

| Conductor: | Compact stranded Aluminum conductor, Cl.2 as per IEC 60228 | Insulation: | XLPE(cross-linked polyethylene) rated at 90 OC |
|---|---|---|---|
| Sample: | Free | Insulation Color: | Red,Yellow,Blue |
| Sheath: | PVC or FR-PVC type ST2 to IEC 60502, black | Screen: | Copper tape |
| Corporation: | shenghua group | Brand: | Sh Cable |
| Podkreślić: | 21/35kV aluminum power cable,XLPE insulated industrial cable,high voltage aluminum power cable |
||
| Attribute | Value |
|---|---|
| Conductor | Compact stranded Aluminum conductor, Cl.2 as per IEC 60228 |
| Insulation | XLPE(cross-linked polyethylene) rated at 90°C |
| Sample | Free |
| Insulation Color | Red, Yellow, Blue |
| Sheath | PVC or FR-PVC type ST2 to IEC 60502, black |
| Screen | Copper tape |
| Corporation | Shenghua Group |
| Brand | Sh Cable |
| Threat Scenario | Shenghua Solution | Certified Performance |
|---|---|---|
| Seismic Cable Heave | Min. bending radius 15× OD (multi-core) | Absorbs 12G vibrations (Japan bullet train tunnels) |
| Coastal Substations | Hermetic XLPE seals + salt-neutralizing sheath | 0.164Ω/km resistance (3×185mm²); 90°C operation in 95% humidity |
| Mining Rockfall | Steel-tape armor (YJV32) + impact-resistant filler | Survives 3-ton impacts; maintenance costs ↓45% in Zambia Copperbelt |
| Arctic Grid Freeze | Arctic-grade LSOH sheath (-40°C flexibility) | Passes IEC 62930 cold bend test at -40°C |
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
CE, RoHS, KEMA and more others at request
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. | Approx. Weight | Max. D.C Resistance of Conductor (20°C) | Testing Voltage A.C | Current Rating In air (A) | Current Rating In soil(A) |
|---|---|---|---|---|---|---|---|---|---|
| 1 × 50 | 10/2.52 | 9.3 | 2 | 37.0 | 1360 | 0.641 | 73.5 | 170 | 165 |
| 1 × 70 | 14/2.52 | 9.3 | 2.5 | 38.0 | 1471 | 0.443 | 73.5 | 210 | 200 |
| 1 × 95 | 19/2.52 | 9.3 | 2.5 | 40.0 | 1605 | 0.320 | 73.5 | 255 | 240 |
| 1 × 120 | 24/2.52 | 9.3 | 2.5 | 42.0 | 1756 | 0.253 | 73.5 | 290 | 270 |
| 1 × 150 | 30/2.52 | 9.3 | 2.5 | 44.0 | 1910 | 0.206 | 73.5 | 330 | 305 |
| 1 × 185 | 37/2.52 | 9.3 | 2.5 | 45.0 | 2102 | 0.1640 | 73.5 | 380 | 345 |
| 1 × 240 | 48/2.52 | 9.3 | 2.5 | 48.0 | 2395 | 0.1250 | 73.5 | 435 | 400 |
| 1 × 300 | 61/2.52 | 9.3 | 3 | 50.0 | 2672 | 0.1000 | 73.5 | 510 | 455 |
| 1 × 400 | 61/2.97 | 9.3 | 3 | 53.0 | 3094 | 0.0778 | 73.5 | 595 | 525 |
| 1 × 500 | 61/3.23 | 9.3 | 3 | 55.0 | 3595 | 0.0605 | 73.5 | 690 | 600 |
| 1 × 630 | 61/3.50 | 9.3 | 3.1 | 60.0 | 4193 | 0.0469 | 73.5 | 800 | 680 |
| 1 × 800 | 91/3.20 | 5.5 | 3.1 | 65 | 4792 | 0.0367 | 73.5 | 920 | 770 |
| 1 × 1000 | 91/3.75 | 5.5 | 3.2 | 70 | 5581 | 0.0291 | 73.5 | 1040 | 860 |
| 3 × 50 | 10/2.52 | 9.3 | 3.5 | 76.0 | 4492 | 0.641 | 73.5 | 145 | 170 |
| 3 × 70 | 14/2.52 | 9.3 | 3.6 | 80.0 | 5000 | 0.443 | 73.5 | 190 | 190 |
| 3 × 95 | 19/2.52 | 9.3 | 3.7 | 83.0 | 5533 | 0.320 | 73.5 | 215 | 230 |
| 3 × 120 | 24/2.52 | 9.3 | 3.8 | 86.0 | 6054 | 0.253 | 73.5 | 240 | 255 |
| 3 × 150 | 30/2.52 | 9.3 | 3.9 | 89.0 | 6593 | 0.206 | 73.5 | 280 | 295 |
| 3 × 185 | 37/2.52 | 9.3 | 4.0 | 93.0 | 7255 | 0.1640 | 73.5 | 310 | 330 |
| 3 × 240 | 48/2.52 | 9.3 | 4.2 | 98.0 | 8216 | 0.1250 | 73.5 | 365 | 380 |
| 3 × 300 | 61/2.52 | 9.3 | 4.3 | 102.0 | 9248 | 0.1000 | 73.5 | 430 | 435 |
| 3 × 400 | 61/2.97 | 9.3 | 4.6 | 110.0 | 10663 | 0.0778 | 73.5 | 485 | 500 |
